Pettersson M500-384 USB Ultrasound Microphone

Description

The M500-384 is another addition to the series of Pettersson ultrasonic microphones. It offers great ease of use and is pric…

Free shipping within Europe
In stock = delivered within 48 hours

€454.00

incl. 21% VAT

Available, delivery time: 1-3 days

Product information "Pettersson M500-384 USB Ultrasound Microphone"

The M500-384 is another addition to the series of Pettersson ultrasonic microphones. It offers great ease of use and is priced at roughly the same point as the M500.

The M500-384 can be connected to a device running Android, Linux (Ubuntu), OS X, iOS or Windows and will work as a standard audio recording device. You don’t need to install any special drivers.

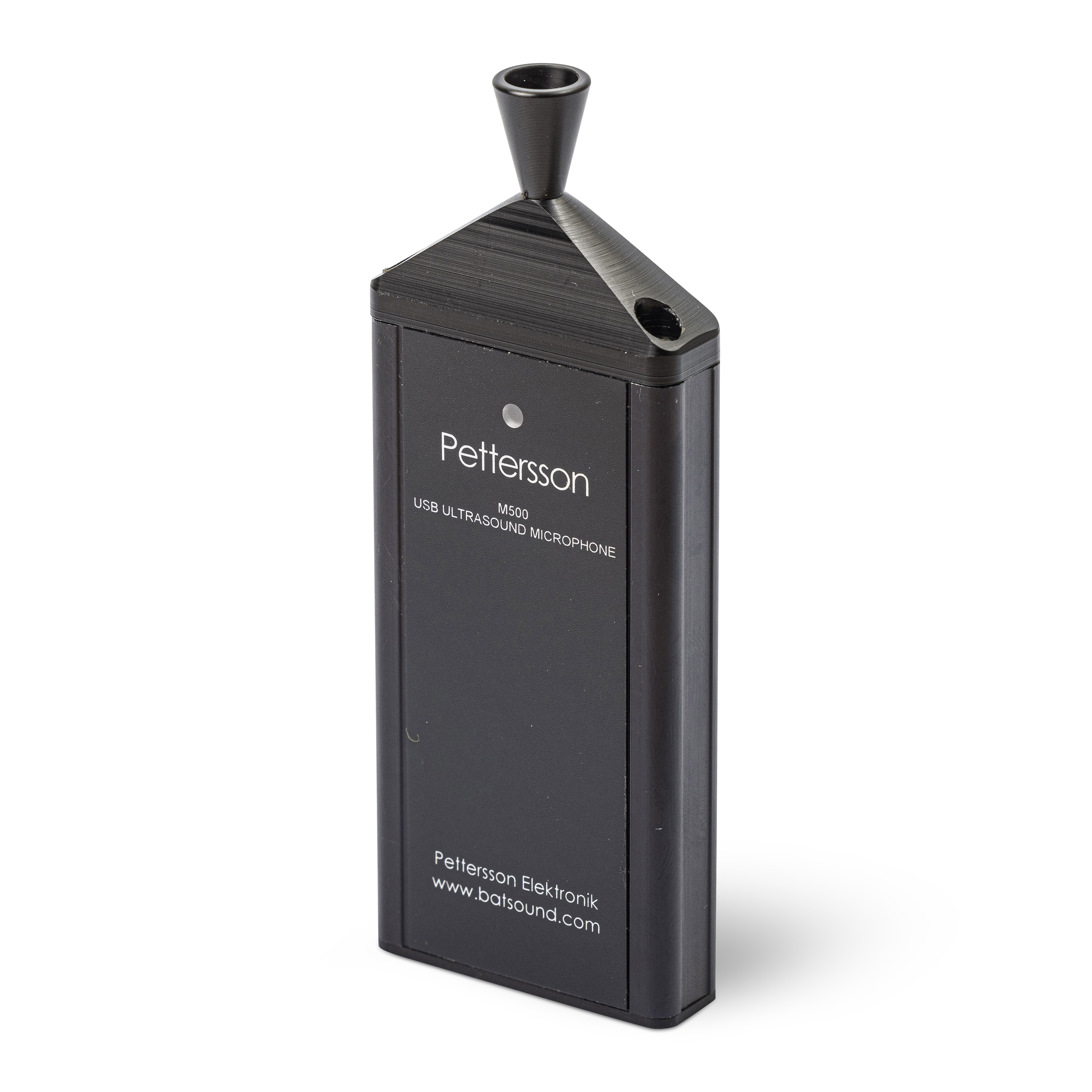

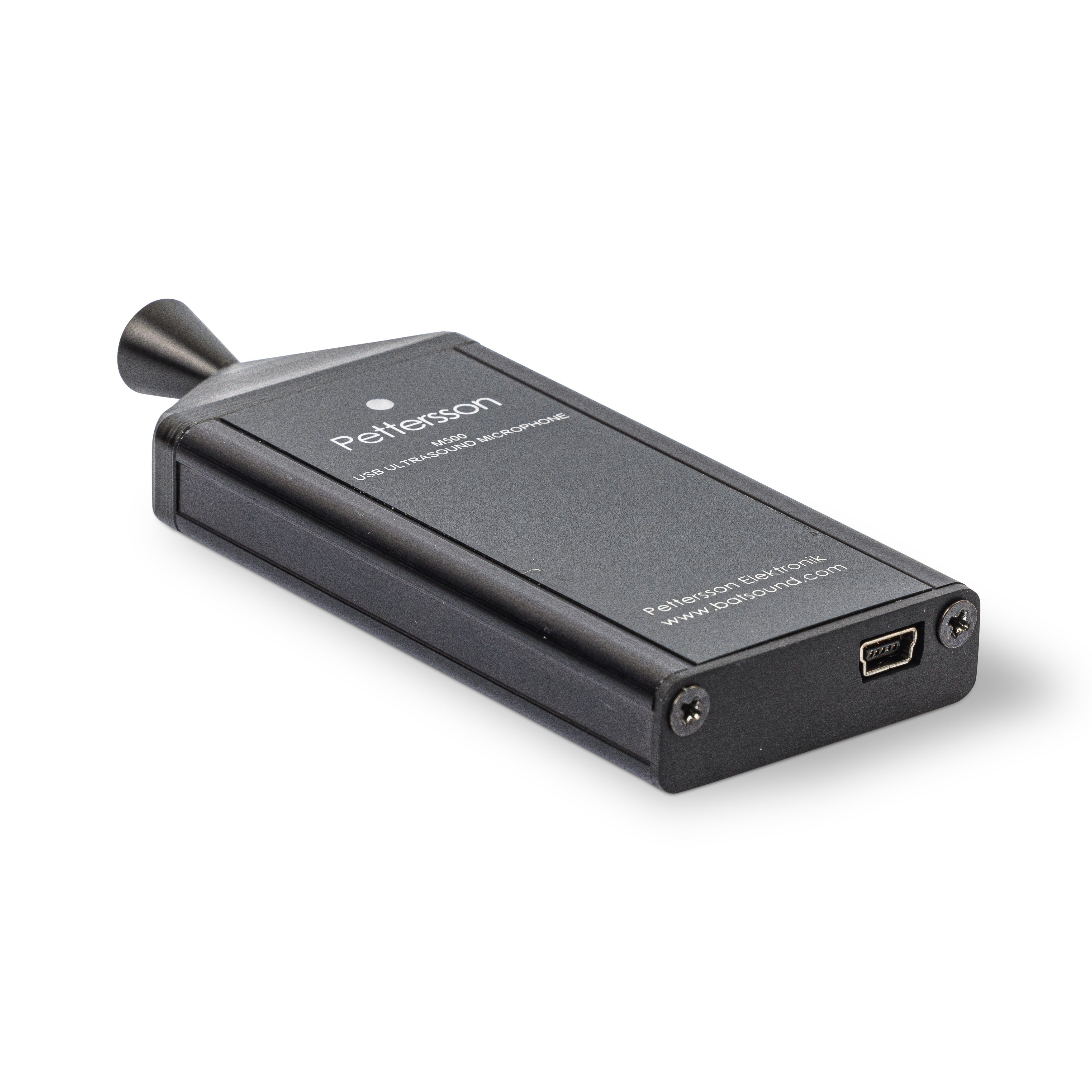

Like the M500, the M500-384 comes in a slim and durable aluminium housing and uses the same advanced electret microphone technology as the well-known D500X detector.

The M500-384 can be used in both directional and omni-directional mode. The M500-384 is the ideal choice if you plan to use your smartphone to record ultrasonic sounds. Also consider this model if you wish to be independent in terms of operating system or software. Check the hardware compatibility of the software you choose and whether it supports recording at 384 kHz.

A 0.5 m USB cable is included (USB Mini- to USB-A).

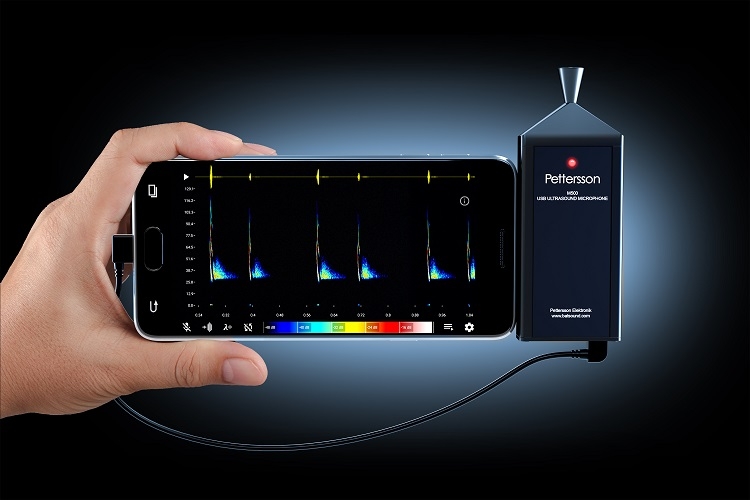

The image shows the M500-384 with an Android smartphone (not included) running the Bat Recorder app, available in the Google Playstore.

What's in the box?

1 Pettersson M500-384
1 USB A - mini B cable, 0.5 m
1 Manual

Technical specifications

Size and weight:	43 × 114 × 13 mm, 60 g
Microphone:	Advanced electret
Sampling frequency:	384 kHz
ADC resolution:	16 bits
Frequency range:	10 kHz – 160 kHz
Interface:	USB 2.0, full speed, OTG/host
Anti-aliasing filter:	8th order, 160 kHz
Power:	USB bus powered

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Pettersson M500 USB Ultrasound Microphone

The M500 USB microphone is the ultrasonic microphone of the D500x in a more compact aluminum housing and equipped with a USB 2.0 connector for connectimg to laptops and tablets. The microphone comes with a free ‘Lite’ version of the user-friendly BatSound Touch recording programme and allows for real-time tracking of spectrograms and wave forms. The recordings can be saved as 16-bit wave files. Sounds between 15 and 190kHz are monitored at a frequency of 500kHz with the M500 microphone, which can operate in both directional and omnidirectional modes. The well-known noise reduction algorithm, high sampling rate and anti-aliasing filter ensure high-quality sound. Manual, pre and post triggers are configurable. The software is available for Windows and Android systems. And the M500 comes with a 50cm cable fitted with a mini USB connector at one end (for the M500) and a standard USB A connector at the other. In addition, the M500 can also be connected to a tablet by using a USB A to USB micro extender with "OTG" label (for fast data exchange). What's in the box? 1 Pettersson M500 1 USB A - mini B cable, 0.5 m 1 Manual Technical specifications Dimensions and weight: 43x114x13 mm, 60 g Microphone: Advanced electret Sampling frequency: 500 kHz ADC resolution: 16 bits Frequency range: 10 kHz – 210 kHz Interface: USB 2.0, high speed, OTG/host Anti-aliasing filter: 8th order, 210 kHz Real-time monitoring: Via the PC sound card (down-sampling) Power supply: USB Operating system: Windows 7, 8, 8.1, 10, 11

€454.00

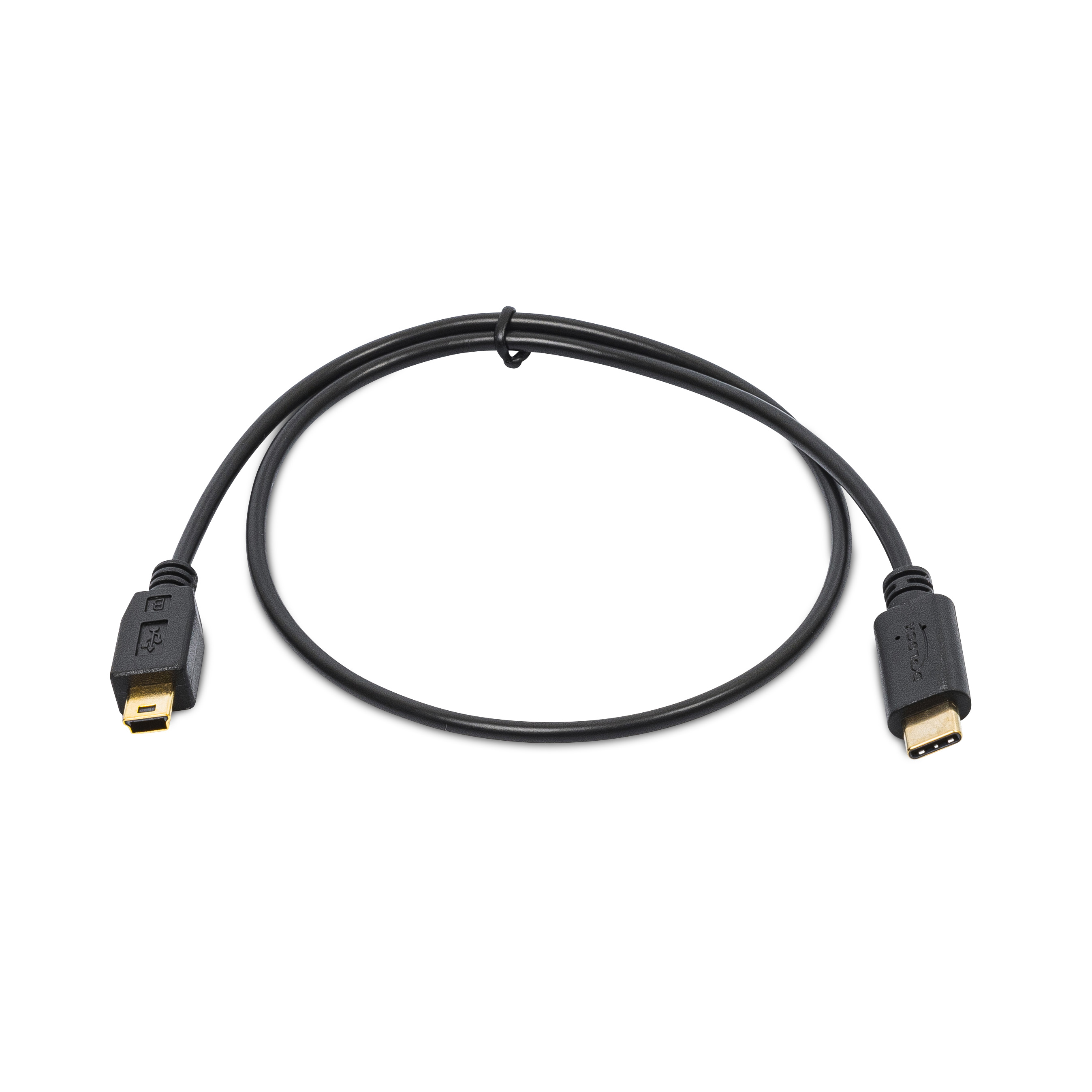

USB 2.0 cable C-Mini B
